\GUF-NG

Automatic high speed machine for the production of cable and curb chain right and left

Automatic high speed machine for the production of cable and curb chain right and left GUF-NG

Electronic movement of plier OMBI patented pending
Electronic system for selection of cable or curb chain
Option for hollow chain production

Automatic high speed machine for the production of cable and curb chain right and left

Electronic system OMBI patented pending driven by touch screen to produce cable chain and curb right and left.

Simple tooling set up.

This version of machine doesn’t need chain collector plate for single cable chain.

The GUF-NG is provided of:
- multi language touch screen panel with machine controls and diagnostic alarms
- chain coiling system (in option)
- chain collector plate (in option)
- laser connection
- laser welding unit (in option)
- electronic guide device for hollow wire (in option)
- automatic lubrication system
- CE certification

Technical data GUF-NG

Wire diameter 0,20 - 0,60 mm

Output rpm - links 350 max

Voltage 220 V/50-60 Hz

Power headed 0,75 kW

Net/Gross weight 220/370 kg

Overall dimensions 55x96x148 cm

Photogallery

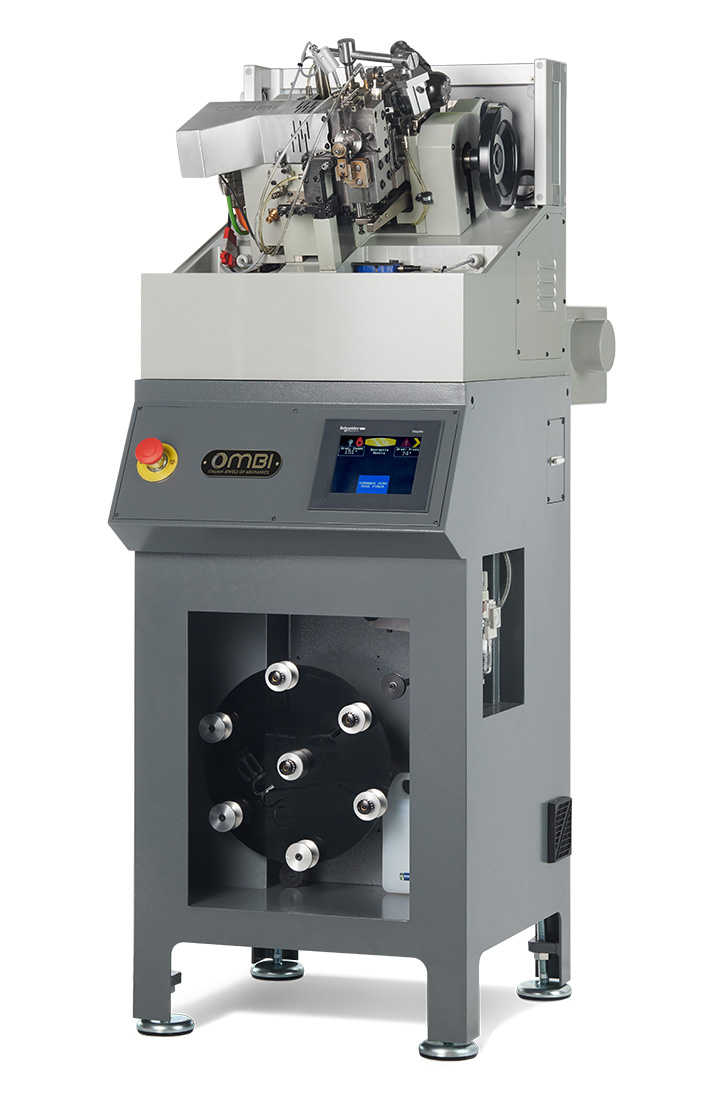

Automatic high speed machine for the production of cable and curb chain right and left — Front view GUF-NG

Example of chains production with GUF-NG

Example of chains production with GUF-NG
