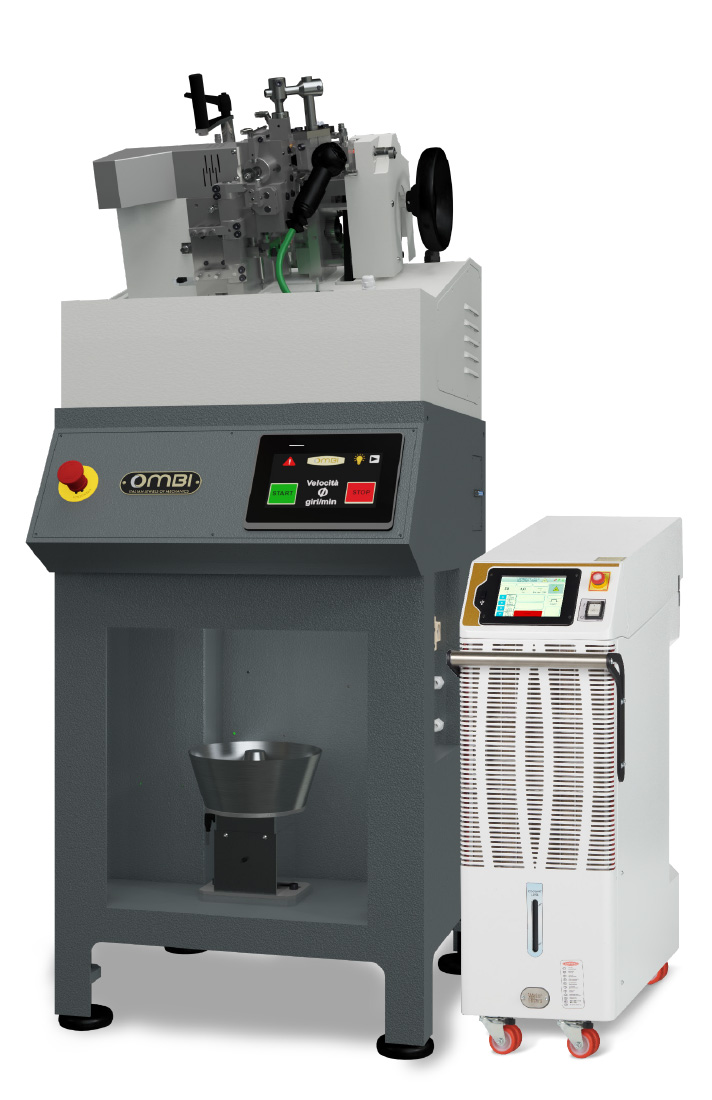

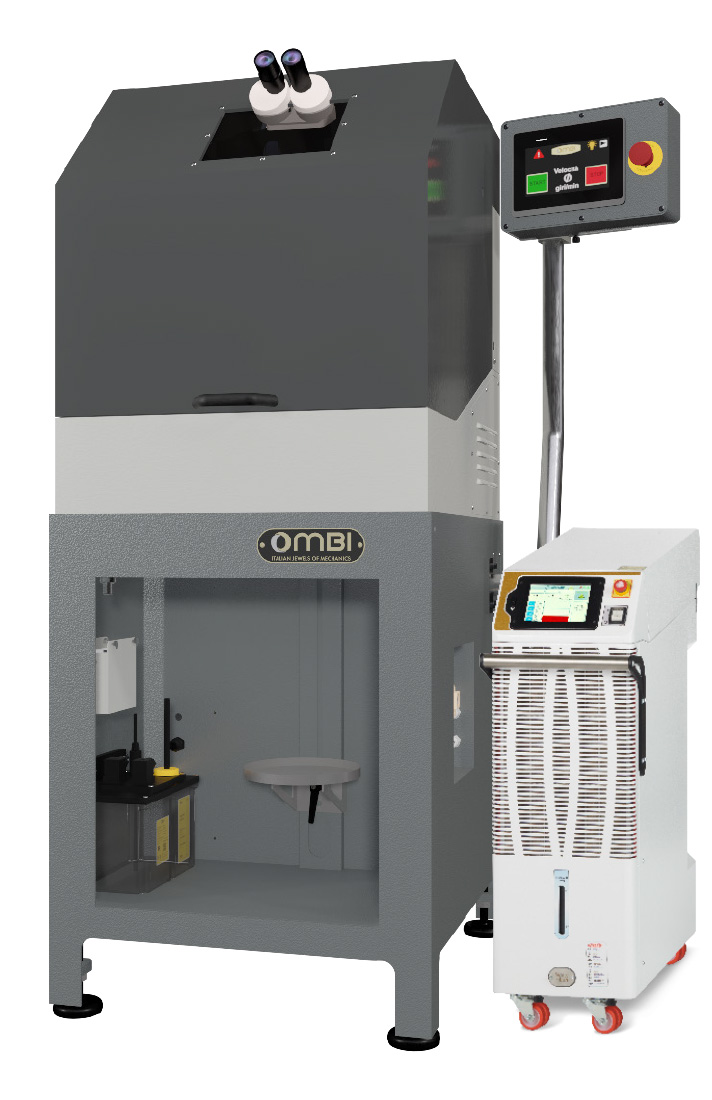

Automatic high speed machine for the production of figaro curb right, left and figaro cable

Automatic high speed machine for the production of figaro curb right, left and figaro cable A6-NG.
  • Electronic movement of plier Ombi patentedElectronic movement of plier Ombi patented
  • Electronic system for selection of figaro curb or figaro cableElectronic system for selection of figaro curb or figaro cable
  • Option for hollow chain production Option for hollow chain production

Electronic system Ombi patented for Figaro chain production. By an easy command on touch screen the machine automatically changes configuration from figaro curb left and right to figaro cable.
With same ease the machine can produce curb left and right or cable chain.
Simple changing of wire size.

The A6-NG is provided of:
- multi language touch screen panel with machine controls and diagnostic alarms
- automatic wire feeder doppio
- chain coiling system (in option)
- chain collector plate (in option)
- double electronic guide device for hollow wires (in option)
- laser connection
- laser welding unit (in option)
- automatic lubrication system
- CE certification

Technical data A6

Wire diameter 0,25 - 0,70 mm

Output rpm - links 280 max

Meters/h 50 max

Voltage 220 V/50-60 Hz

Power headed 1 kW

Net/Gross weight 235/345 kg

Overall dimensions 120x95x160 cm
